AMT Self Centering Vice 125

Scope of Application:-

• Ideal for use on 3, 4 & 5 Axis Machining Centers due to its compact design.
• Horizontal Installation – Suitable for Vertical Machining Centers.
• Vertical Installation – Suitable for Horizontal Machining Centers.

Gripp Clamping:-

With the clamping jaw systems you can clamp parallel workpieces safely and quickly. Stamping and clamping takes place in one work step.

Key Points:-

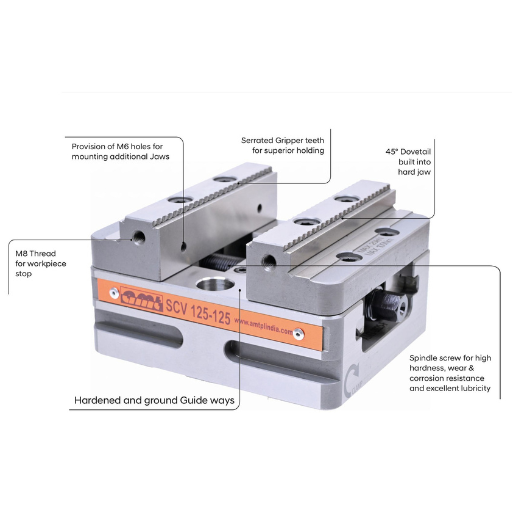

• Hardened and ground Guide ways.
• Possibility for work stop mounting.
• Serrated Gripper teeth for superior holding.
• 45° Dovetail built into hard jaw.
• TiN coated Spindle screw for high hardness, wear & corrosion resistance and excellent lubricity.
• Provision of M5 holes for mounting additional Jaws.Product Features:-
  • Heavy duty high precise self-centric clamping vice with good repeatability.
  • Compact design with best accessibility.

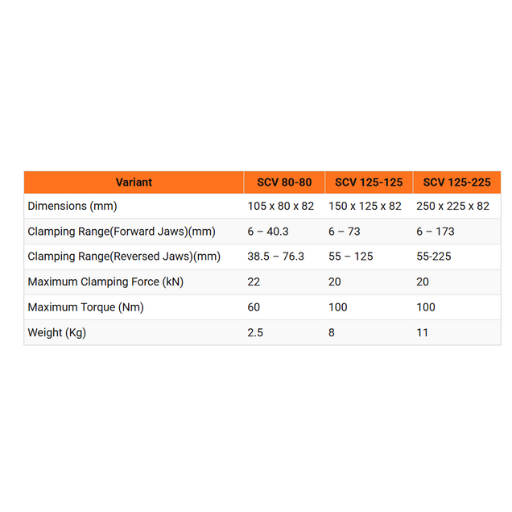

  • Clamping force – 20 KN with 100Nm.
  • Interface for ZPS clamping and mounting holes as standard.
  • Spindle screw with TiN coating (for high hardness, wear & corrosion resistance and excellent lubricity).
  • 4 Bolt jaw mounting for Increased Clamping Force.
  • Provision of M5 holes for mounting additional Jaws.
  • Serrated gripper teeth for superior bite with 45° Dovetail provision.
  • Featuring a dowel pin for better accuracy in Jaws.
  • High material savings due to minimal clamping edge requirements.


    Scope of Supply

    • 1 X Vice
    • 4 X Side Clamps
    • 1 X Stopper
    • 1 X Ratchet
