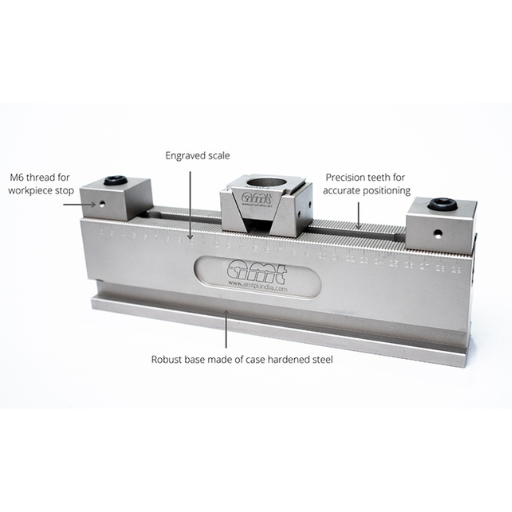

AMT Rail Vice 300

Overview

AMT Rail vice features a range of components that are suitable for clamping different work piece types, sizes and materials on all types of work holding platforms and machining centers.

STANDARD SCOPE OF SUPPLY

• RAIL BODY 300 -1 No.
• FIX JAW – RL- 2 Nos.
• WEDGE CLAMP WITH STANDRAD JAW-KD-STJ-2 - 1 No.
• SIDE CLAMP-RL - 4 Nos.
• STEP CLAMP-RL- 4Nos.
• WORKPIECE STOPPER PLATE-RL - 2 Nos.
• LOW HEAD BOLT M12 – 3 Nos.
• T NUT 18-12 - 3 Nos.
• T NUT 18-6 -4 Nos.Features
• • AMT Rail vices are highly flexible, and they quickly and easily clamp multiple small or large work pieces.
  • Can be used on VMC/4th axis/HMC machine-for efficient precision machining
  • Horizontal installation - great variability and flexibility
  • Modularly constructed clamping system, which has its advantages in the versatile application possibilities.
  • Through use of a wide array of fixed jaws and wedge clamps, this clamping system is adapted to your needs.
  • Riser blocks/parallels. These are used to lift up the workpiece from base.
  • Reproducible clamping forces are achieved using a torque wrench.
  • Reproducible clamping range is achieved using scale.
